Brand Name : Honest
Model Number : HN - 1530
Certification : CE ISO
Place of Origin : China
MOQ : 1 Set
Price : 20000 USD/ Set-35000 USD / Set
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 5-8 Working Days
Packaging Details : Wooden Package
Application : LASER CUTTING
Laser Type : co2
Cutting Speed : 0-60000/min
Cutting Thickness : according to materials
Control Software : CAD

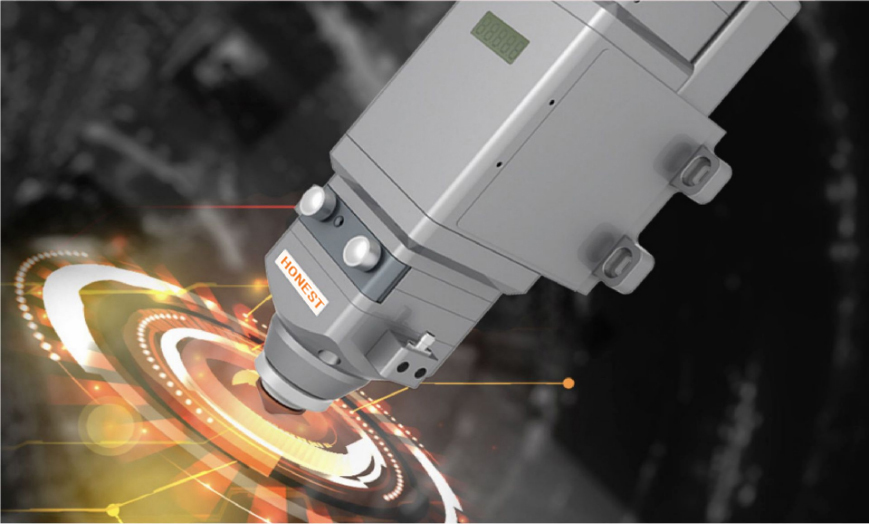

Laser Head Brand : Raytools
CNC Metal Fiber Laser Cutting Machine Bottom Fiber Laser Cutting Machine
CNC metal Fiber Laser Cutting Machine Bottom fiber laser cutting machine
►Machine overview
►Machine Data
Feature/Model | HN3015 | HN4015 | HN4020 |
Working Area (L*W)) | 3000mm*1500mm | 4000mm*1500mm | 4000mm*2000mm |
Stroke (X/ Y/ Z Axis) | 1525mm/3025mm/150mm | 1525mm/4025mm/150mm | 2025mm/4025mm/150mm |
X/Y Axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
X/Y Axis Repositioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Max. Moving Speed | 110m/min | 110m/min | 110m/min |
Max. Acc. Speed | 1.0G | 1.0G | 1.0G |
Power Porection Grade | IP54 | IP54 | IP54 |
Laser Power | 1000W~12000W | ||
Max. Loading Weight | 800kg | 1000kg | 1400kg |
Machine Weight | 3300Kg | 4000Kg | 5100Kg |
Overall Dimensions (L*W*H) | 4850X2730X1700mm | 6015X2730X1700mm | 6015X3300X1700mm |
►Product details
Heavy-duty Welding Bed The heavy-duty welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1000kg. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once. Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail. It reduces the loss of the equipment when it is used and keeps the precision of the machine for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.
►Application
Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets,mechanical
parts, kitchenware, sanitary ware, auto parts, machinery manufacturing,metal crafts, saw blades, electrical parts,glasses
industry, spring sheets, circuit boards,electrical Kettles, medical microelectronics, hardware, doors and windows and other
industries.
►Packaging&shipping
1. Outside package: Standard marine export plywood case.
![]() |
