CYPCUT Control Fiber Laser Metal Cutting Machine 8M/Min

Name: CYPCUT Control Fiber Laser Metal Cutting Machine 8MMin
Brand: Honest
Price: 2000 USD

Quality CYPCUT Control Fiber Laser Metal Cutting Machine 8M/Min wholesale

Brand Name : Honest

Model Number : HN3015

Certification : CE ISO

Place of Origin : China

MOQ : 1 Set

Price : $2000 / Set-$40000 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Set / Month

Delivery Time : After 3-20 Days

Packaging Details : Wooden Package

Product Name : fiber laser pipe metal cutting machine for tubes

Net Weight : 1800KG

Graphic format supported : BMP, PLT,DST,DXF,AL

Cutting Speed : 8M/min

Laser Type : fiber

Control software : CYPCUT

Contact Now

Laser Fiber Cutting Machine Fiber Laser Metal Cutting Machine

Product Description

CYPCUT Control Fiber Laser Metal Cutting Machine 8M/Min

Intelligent Open Loop Control System Cypcut laser cutting system is a full-featured open-loop control system launched specifically for the dual-use metal processing industry. Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept international standard G codes. When opening and importing external files, optimization is automatically performed. Flexible and diverse automatic layout and manual layout sequence functions, a variety of array methods are available. The powerful material library function allows all process parameters to be saved for the same material to be used again. Processing breakpoint memory and positioning any point function. Fixed-height cutting, off-board following and multiple edge-finding methods. Support remote control of the system via wireless handheld box and Ethernet. One click to set flight cutting path. It is easy to install, easy to debug, excellent in performance and complete in plan.It is the fiber laser cutting control system with the highest market share at present.

Model	HN-1530/HN-2040/HN-2060
Working area	1500mm*3000mm
Laser type	Fiber laser
Rated laser power (optional)	1000W-12000w
Traditional system	Gantry double drive structure
lubrication system	Fully automatic
Maximum speed	100m/min
Maximum acceleration	1.0G
positioning accuracy	±0.01mm/1000mm
Repeated positioning accuracy	±0.03mm/1000mm
Support for graphic formats	CAD, DXF(etc)
work environment	0-40 ℃, humidity ≤ 80%, no condensation
Total power	20KW
Power demand	Three phase 380V / 50Hz / 60Hz
Outline size	4420mm2320mm1750mm
Total weight approximately	4000KG

product details

The special cutting head for pipes is powerful, light and flexible, durable, easy to control various types of pipes and powerful. high-precision Closed loop stepping motor is adopted to effectively avoid stepping loss. Focusing speed 100M / s, repetition accuracy 1 μ m. IP65 dust-proof, patented protective mirror cover plate, dust-proof without dead corner. Multiple protection 3 protective lenses for efficient protection of collimating and focusing lenses. 2-way optical water cooling, effectively prolonging continuous working time.

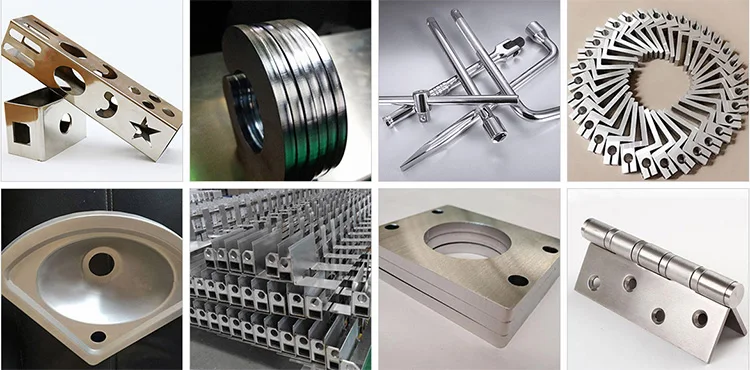

sample

It can cut a variety of metal plates and pipes, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized steel, various alloy plates, rare metals and other materials; Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries;

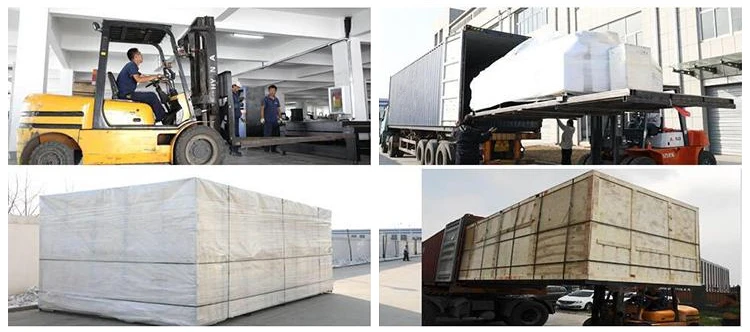

Packaging＆Shipping

1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 3-20 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

CYPCUT Control Laser Fiber Cutting Machine

Fiber Laser Metal Cutting Machine 8M/min

8M/min Laser Fiber Cutting Machine

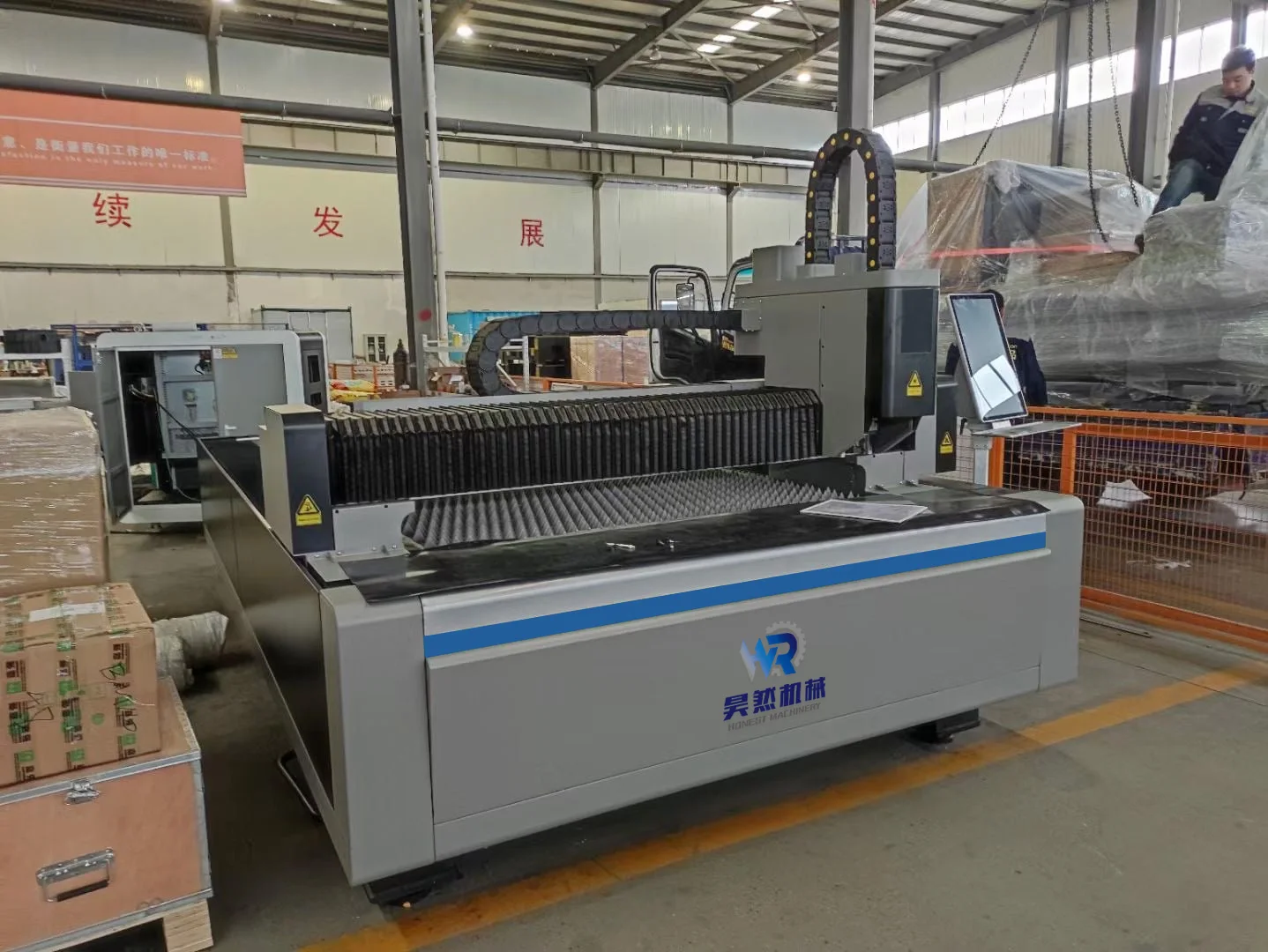

CYPCUT Control Fiber Laser Metal Cutting Machine 8M/Min Images
