Stainless Carton Steel Pipe Tube 3000W Fiber Laser Cutting Machine 3000x1500
3000 X 1500 Stainless Carton Steel Pipe Tube 3000W And Plate Fiber Laser Cutting Machine

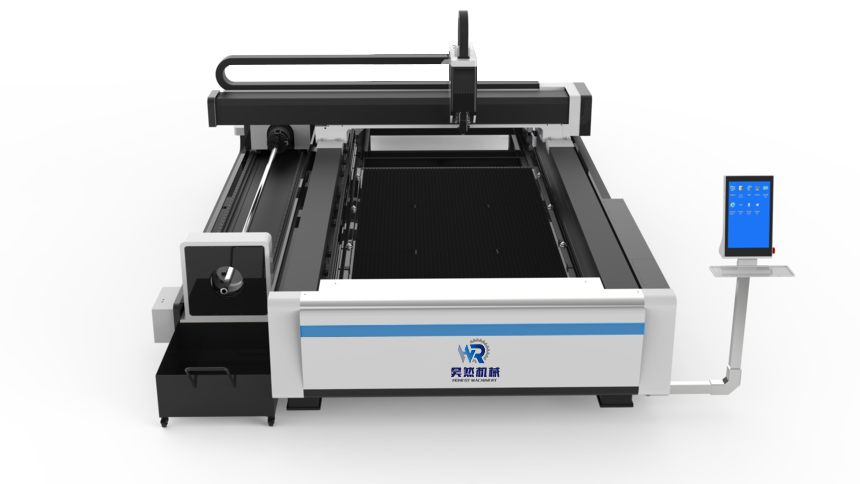

►Machine overview
The plate and tube integrated fiber laser cutting machine series mainly face customers who need laser cutting processing of plates and tubes. This model adopts a rack and pinion transmission structure, standard manual clamping chuck, and push-type tube cutting.It can be used for General sheet metal cutting and common square tube, round tube, rectangular tube cutting.
►Machine Data
| Model | Whole cover exchange platform laser cutting machine | | Engraving size | 3000*1500mm | | Overall dimensions | 8850*2850*2310mm | | Laser power | 1000W/1500W/2000W/3000W/4000w/6000W/8000W | | Engraving speed | Max speed 120m/min | | Re-position accuracy | ±0.02mm | | Working voltage | AC380V±10%,50-60Hz | | X axis and Y axis positioning accuracy | ±0.03mm | | Max acceleration | 1.5G | | Max load-bearing of working table | 1000KG | | Power consumption of whole machine | <15KW (<12kw-1KW) | | Supported file format | BMP,HPGL,PLT,DST,DXP and AI | | Driving system | Japanese YASKAWA/Pansonic servo motors | | Laser tube cooling type | Water-cooling and protection system | | Transmission mode | Important high precision with double driving rack | | Laser control software | Cypcut control system | | Laser source | IPG/Raycus | | Weight | 5000KG | |
►Application
There are many application industries of welding robot, including engineering machinery, petrochemical, energy, nuclear power, rail transit, aerospace, shipbuilding, mining, machinery, automobile, metallurgical equipment, food machinery, medical machinery and other industries.
1. Automobile industry.Many corners of the automobile industry, such as car doors, exhaust pipes and so on, after the formation of some extra corners may burr needs to be dealt with, assuming that the precision is difficult to reach manually, and then a lot of efficiency.Adopting robot laser cutting machine can deal with batch processing quickly.
2. Advertising.Advertising industry because of more customization, the effectiveness of traditional methods is very low, the use of laser cutting machine, no matter how thick the plate, no matter how many font, laser cutting machine will make you satisfied.
3.Kitchenware industry.Now the house is more and more, more and more decoration, kitchen utensils and appliances related products demand is more and more, laser cutting machine suitable for cutting thin plate stainless steel, fast, high precision, high satisfaction, and can complete customized and characteristic products open, deep kitchen manufacturers love.
►Product Detail
1. Auto-focusing laser head: The same laser head can quickly change the focusing lens of different focal lengths, adapt to various power processing, and meet the cutting of different thickness plates. By using the auto focus function, the user can quickly and accurately focus when cutting, which makes the cutting work more time-saving and better. Therefore, using a laser head with auto-focus function can help you improve efficiency in the work process.
2. Segmented rectangular tube-sheet welding machine bed: The internal structure of the machine bed adopts the aircraft metal honeycomb structure, which is welded by multiple rectangular pipes. The pipes are equipped with stiffeners to increase the strength and tensile strength of the machine bed and increase the guide rail surface. Its tensile resistance and stability can effectively avoid deformation of the bed.
3. Japan Fuji servo motor, stable and powerful power output: Fuji servo motor, as a world-class motor manufacturer, enjoys a high reputation in motion control. Won the market's praise in the industry and has been highly recognized by customers.
4. Cypcut professional intelligent control system, with automatic nesting function: stable performance, fast operation, support a variety of common file formats, DXF, PLT...concise and fast operating system, one-click import of multiple types of cutting graphics, Accurate cutting instructions make the user experience better.
5. High-power laser source Chuangxin/IPG/Raycus: The laser of each machine is selected according to the customer's cutting needs.
►Product Characteristic
1. Powerful cutting function, which can meet customers' flat and tube cutting requirements at the same time.
2. It adopts pneumatic chuck and push-type cutting method, which has high centering precision and processing precision.
3. The machine tool adopts the integral profile welding structure that has been verified and verified by CAE for many times.Annealing eliminates internal stress and finish machining, which better solves the stress caused by welding and processing,thereby improving the rigidity and stability of the equipment.
4. The gantry adopts a high-strength aluminum alloy integral casting structure, which has the advantages of light weight and good dynamic response.
5. X/Y axis adopts precision helical gear transmission mechanism, which effectively guarantees the accuracy and speed in the cutting process.
6. Better stability and longer service life.
7. Excellent processing system, friendly interface, convenient operation, and real-time feedback on the processing status,ensuring the orderly progress of processing.
