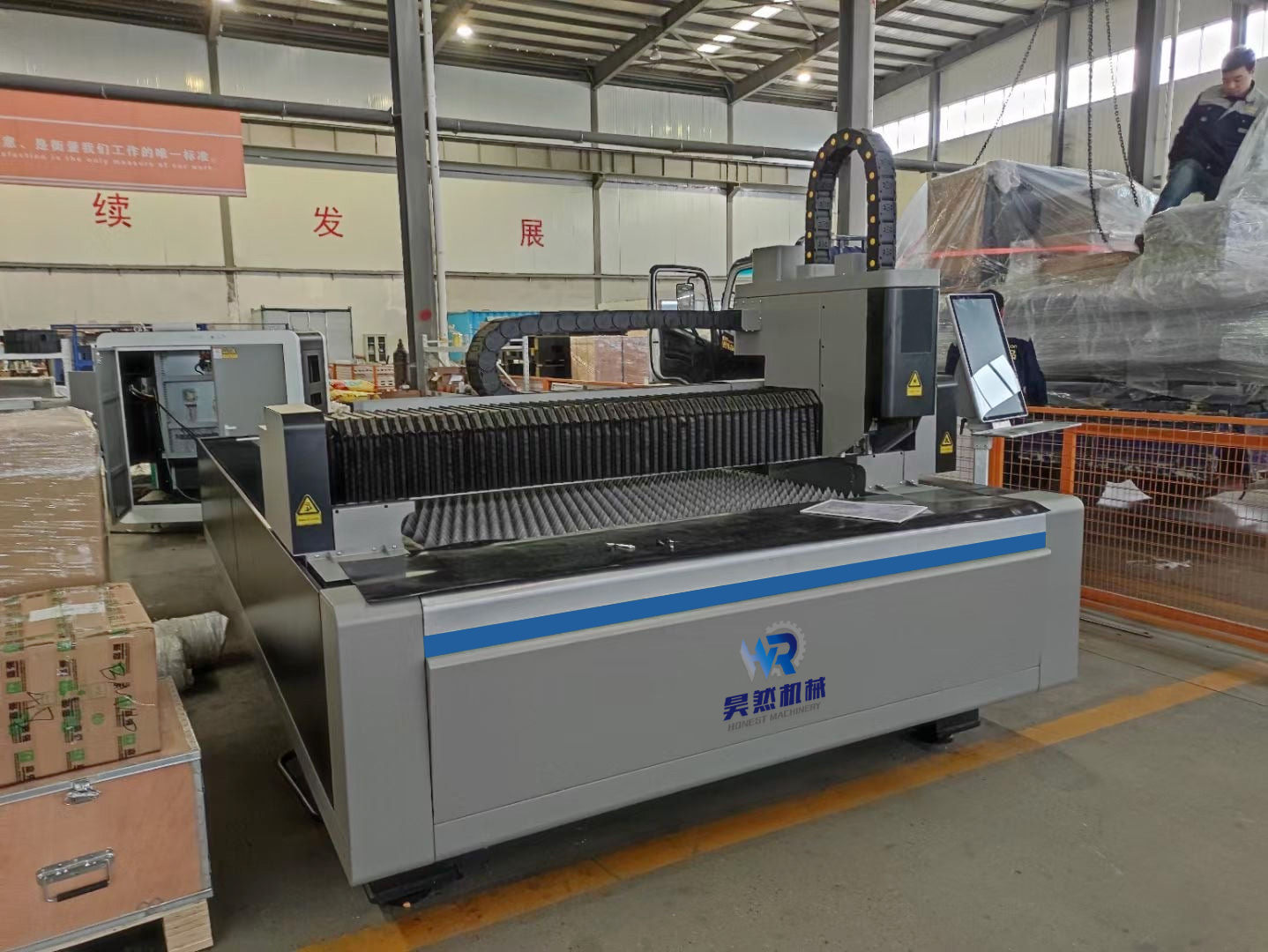

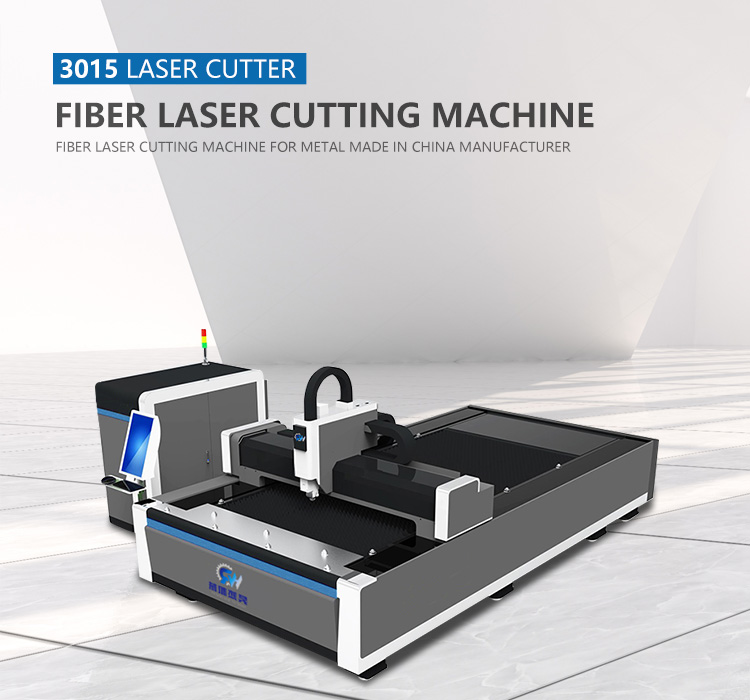

1000W Fiber Laser Cutting Machine For Various Metal Sheet

Name: 1000W Fiber Laser Cutting Machine For Various Metal Sheet
Brand: Honest
Price: 18000 USD

Quality 1000W Fiber Laser Cutting Machine For Various Metal Sheet wholesale

Brand Name : Honest

Model Number : HN - 1530

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : 18000-35000usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10set/monthe

Delivery Time : 10-20day

Packaging Details : Wooden Package

name : cutting various metal sheet 1000W fiber laser cutting machine

Application : LASER CUTTING

Condition : New

Cutting Area : 1500mm*3000mm

Graphic Format Supported : AI, PLT, DXF, Dst, Dwg, LAS, DXP

Cooling Mode : Air Cooling

Laser type : Fiber laser

Rated laser power : 2000W

Contact Now

Cutting Various Metal Sheet 1000W Fiber Laser Cutting Machine
Stainless steel laser cutting machine features
 1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
 2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
 3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet
 materials.
 4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
 5. China Top fiber laser machine cutting manufactuers, HONEST, best price and high quality, with CE etc certificates.
Applications primarily suited for sheet metal processing,such as various metal products processing industries,agricultural machinery industry ,automobiles, aircraft and ships,electrical equipment,lighting advertising industry,elevator manufacturing,kitchen electrical appliances and so on.

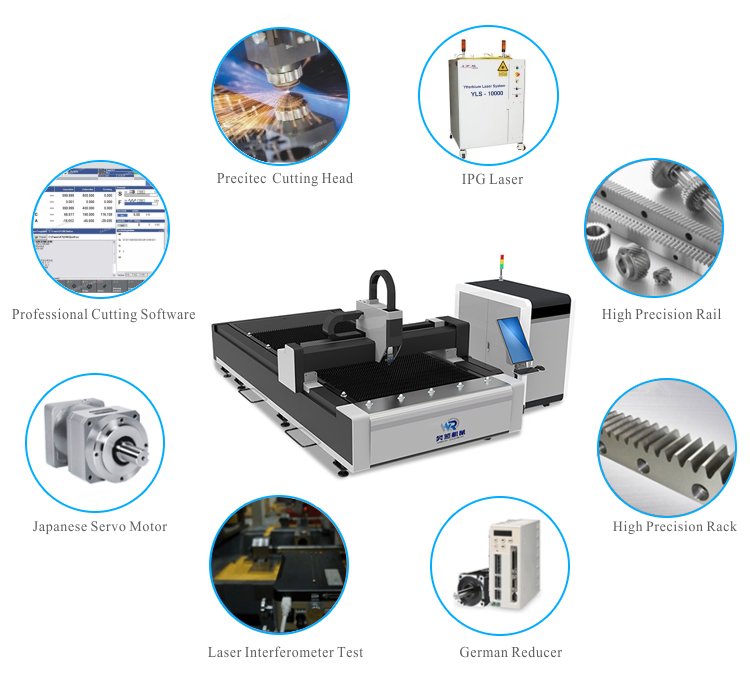

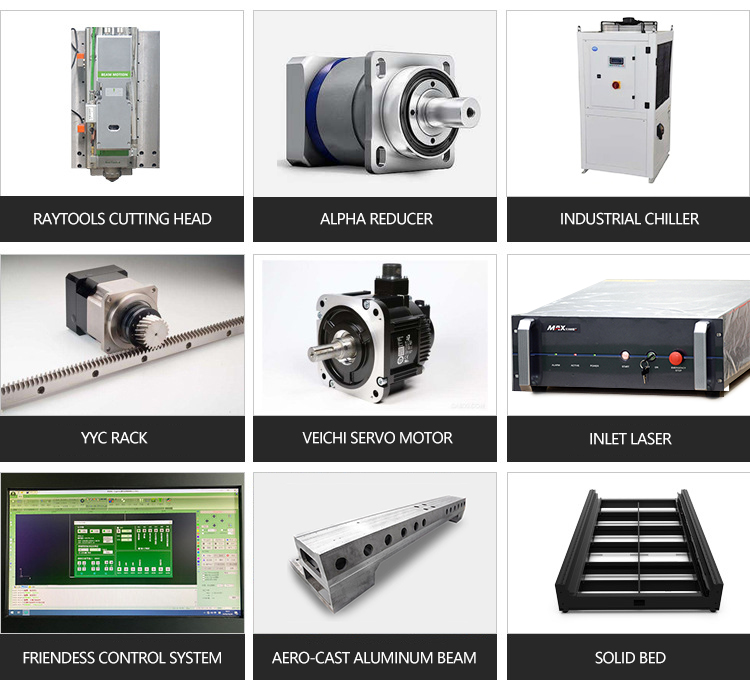

Product Advantages

The advantages of fiber laser cutting machine:

* Integration design without too much spare parts outside, smaller space, less costs.
 * Germany originally imported Alpha rack&pinion, compared to made in China or Taiwan, has higher precision ensuring best dynamic
 performance.Cabinet is well protected: Dust-proof, water-proof; Taiwan imported computer is special for industrial usage with
 long time working.
 * 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 precision welding, make sure 20 years
 usage without deformation.
 * Waste collection device could be moved both sides which have no special request for machine location.
 * Air cylinder helps to feed sheet metal easily and prevent scratching.

1000W Fiber Laser Cutting Machine For Various Metal Sheet

product details


Fiber laser cutter is a high-tech equipment that integrates advanced fiber laser technology, numerical control technology and precision mechanical technology. It uses an advanced fiber laser to output a high-energy density laser beam, and focuses the beam on the surface of the workpiece into a small spot (the smallest diameter can be less than 0.1mm) through the cutting head, so that the workpiece is illuminated by the ultra-fine focus spot The area instantly melts and vaporizes, and evaporates to form a hole. The laser spot irradiation position is moved by the numerical control mechanical system to make the hole continuous and form a narrow slit to realize automatic cutting. Fiber laser cutter is also called fiber laser cutting machine, metal laser cutting machine, fiber laser cutting equipment, laser metal cutting machine. It is faster and more efficient than the CO2 laser cutting machine. The photoelectric conversion rate of the fiber laser cutting machine can reach more than 30%. The machine is more power-saving and energy-saving (only about 8%-10%). The fiber laser cutting machine has obvious advantages and has become the mainstream metal forming equipment in the market. CNC fiber laser cutting machine widely used for carbon steel(C.S.), stainless steel(S.S.), electrical steel, aluminum, aluminum alloy, titanium alloy, galvanized steel, aluminum zinc plate, copper, brass, iron and other metal materials. its mainly including: Flatbed fiber laser cutting machine; Dual-use cnc fiber laser cutter machine with rotary device for metal plate and tube pipe cutting; Exchange platform laser cutter machine; Full cover protective fiber laser cutting machine AND Tube laser cutting machine etc,. all the fiber cnc machine specification can customized as customers need.

Technique Parameters

Feature/Model	HN3015	HN4015	HN4020
Working Area (L*W))	3000mm*1500mm	4000mm*1500mm	4000mm*2000mm
Stroke (X/ Y/ Z Axis)	1525mm/3025mm/150mm	1525mm/4025mm/150mm	2025mm/4025mm/150mm
X/Y Axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y Axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
Max. Moving Speed	110m/min	110m/min	110m/min
Max. Acc. Speed	1.0G	1.0G	1.0G
Power Porection Grade	IP54	IP54	IP54
Laser Power	1000W~12000W
Max. Loading Weight	800kg	1000kg	1400kg
Machine Weight	3300Kg	4000Kg	5100Kg
Overall Dimensions (LWH)	4850X2730X1700mm	6015X2730X1700mm	6015X3300X1700mm

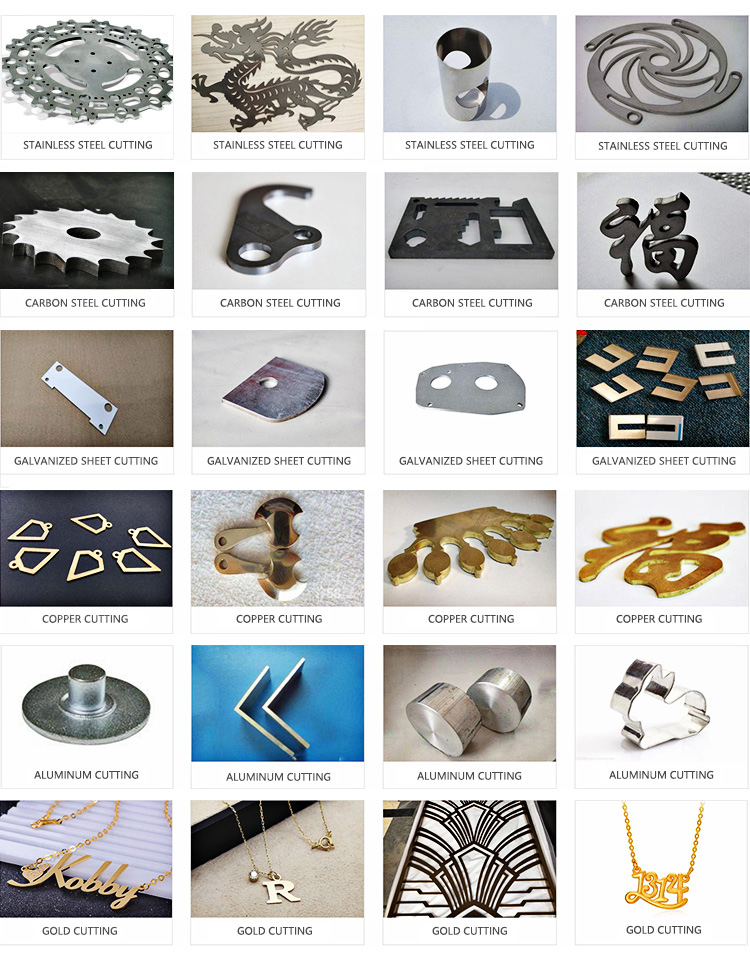

Application Example

Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets,mechanical parts, kitchenware, sanitary ware, auto parts, machinery manufacturing,metal crafts, saw blades, electrical parts,glasses
 industry, spring sheets, circuit boards,electrical Kettles, medical microelectronics, hardware, doors and windows and other
 industries.
